KRP-3-660 / 1140

  • KRP-3-660 / 1140

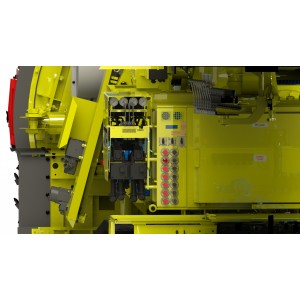

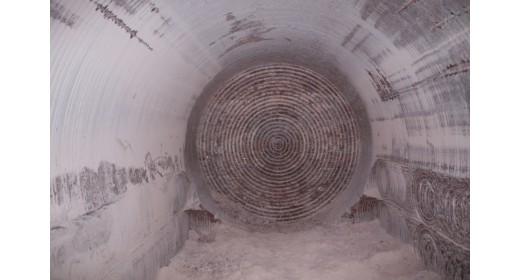

Combine KRP-3-660 / 1140 is intended for carrying out arched mine workings with a cross section of 8 m2 with an inclination angle of ± 15º in salt rocks with cutting resistance up to 450 N / mm, as well as for mining. The harvester carries out breaking of the rock mass, unloading it from the face and loading it into a vehicle installed behind the harvester.

The KRP-3-660 / 1140 combine is a continuation of the PKS-8 series of combines.

Productivity during penetration, m / min

0.28

Production capacity, t / min

4.7

Yield

- cross-sectional area, m2

- height, m

- width, m

- sectional shape of the mine

- min radius of curvature of the ongoing development, m



8 ± 0.1

3 ± 0.1

3 ± 0.1

arched

25

Working inclination angle, degrees, up to

± 15

Fender rotation frequency:

- crosses, min -1

- borax, min -1

- berm cutters, min -1

- cutting drums, min -1



7.05

13.3

21

42.2

Maximum working pressure in the hydraulic system, MPa

ten

Overall dimensions, mm

9200 × 2850 × 3000

Conveyor type

tape

Feeder type

crawler

Belt width, mm

1000

Conveyor belt speed, m / s

1.28

Electrical equipment voltage, V

660/1140

Electric motor power

- total, kW

- fender, kW

- oil pumps and berm cutters, kW

- conveyor, kW

- fan, kW

- filling devices, kW



368.5

2x110

110

15

2 × 11

1.5

Pump capacity, l / min

444

Dust suppression:

- number of fans, pcs.

- fan capacity m / s



2

1.16 ... 2.33

Weight, t

58.5
