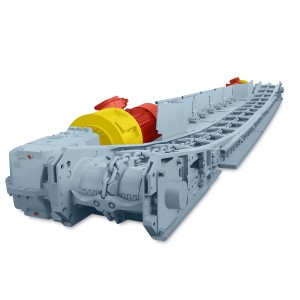

KS-300
The single-chain end conveyor KS-300 with a bed width of 732 mm and the KS-300 end double-chain conveyor with a bed width of 832 mm are designed to transport the ore chopped by the combine harvester to the drift conveyor and make The shearer moves along the working face.
Drive conveyors KS-310 (straight) and KS-310-01 (drive left and right bending) are designed to transport crushed ore from the end conveyor to the belt conveyor.

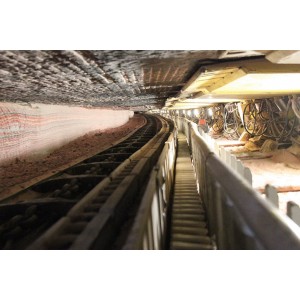

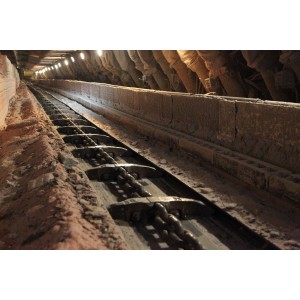

Gallery
|
Conveyor type |
KS-300 single circuit |
KS-300 double circuit |
|
Conveying capacity, t / h |
600 |
700 |
|
Length of conveyor, m, not much |
280 |
300 |
|
Penstaff's profile |
E74V；SP-228 |
E74V；SP-228 |
|
Pan size |
1500 × 732 × 225 |
1500 × 832 × 225 |
|
Traction mechanism |
30×108 or 34×126 (1 chain) |
30×108 or 34×126 (2 chains) |
|
Chain speed, m/s |
1.0 |
1.0 |
|
Chain position |
central |
|
|
Engine power, kW |
2 × 250; 3 × 200 |
|
|
Turbine joint |
Voith 562 * Voith 650 * |
Voith 562 * Voith 650 * |
|
The position of the drive relative to the conveyor belt |
Parallel and perpendicular |
|
|
Width of pot bottom, mm |
732 |
832 |
