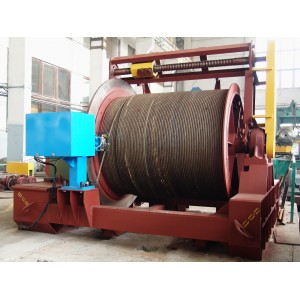

Winch L-3.5
The L-3.5 winch is designed to replace the reinforcement and conductors in mine shafts, as well as to raise and lower a load weighing up to 3.5 tons. The winch is controlled at the place of installation of the control cabinet or from a portable console.
Gallery
|
Lifting capacity, kN |
35 |
|
Rope speed, m / s |
0.1 ... 0.5 |
|
Speed regulation |
frequency converter |
|
Rope diameter, mm |
twenty |
|
Drum rope capacity, m |
1000 |
|
Overall dimensions, mm, no more: - length - width - height |
3520
3110
2410 |
|
Winch weight, kg |
12370 |
|
Supply voltage, V |
380 |
|
Power supply frequency, Hz |
fifty |
|
Rated power of the main drive, kW |
75 |
|
Protection degree of electrical equipment |
IP54 |
