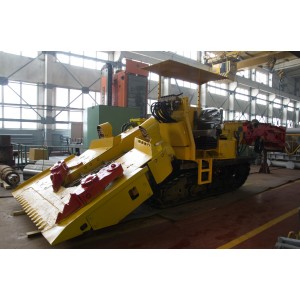

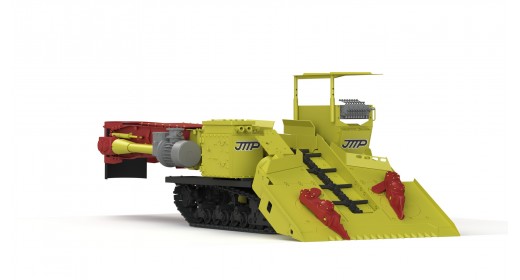

Микропроцессорная компактная станция MP-2
The rock loading machine is designed to mechanize the process of loading rock mass onto a conveyor and other vehicles.
The machine can be used when driving horizontal and inclined workings, and to work in cleaning chambers when drilling and blasting operations.
The machine is used in potash mines, in which the formation of an explosive gas mixture of category 1 of group T1 (methane) is possible.
Gallery
|
1. Productivity, t / min, not less |
5 |
|
2. Overall dimensions of the machine, mm, no more: - length - width - width along the tracks - height |
8400 2410 1510 2210 |
|
3. Feeder, type
- capture width without wideners, mm - width of capture with extenders, mm - the value of lowering the working edge of the toe below the sole of the tracks, mm, not less - the amount of lifting of the working edge of the toe above the sole of the tracks, mm, not less |
lifting with raking paws 2010 2410 250
440
|
|
4. Ходовая часть, тип - drive, type - length of the supporting surface of the tracks, mm - the distance between the axles of the tracks, mm - track width, mm - clearance, mm - working speed, m / s - specific ground pressure, MPa, not more |
crawler electric 2225 1165 345 190 0.15 0.07 |
|
5. Conveyor, type - chute width, mm, not less - turn in the horizontal plane, deg. - height of the boom end above the ground, mm, not more |
scraper, single-chain 650 from plus 47 to minus 47 2970 |
|
6. Electrical equipment - voltage, V - execution - total power of the machine's electric motors, kW including: - feeder - undercarriage - conveyor drive |
660/1140 explosion-proof 67
2x15 18.5 18.5 |
|
7. Explosion protection marking |
I Mb c |
|
8. Maximum working pressure in the hydraulic system, MPa |
10-11 |
|
9. Weight, t, no more |
13 |
