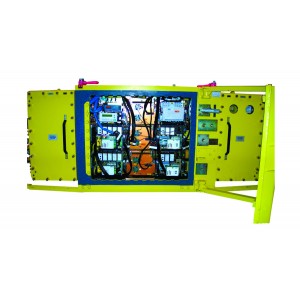

MSL 1203-SS-1,2/500
The station is designed to remotely control the start and stop of the asynchronous motor of the squirrel cage rotor. The squirrel cage operates in a three-phase network. The neutral point voltage of the transformer neutral line is 660 V, 1140 V, suitable for harmful gases ( Methane) and dust in the mine.
The station has PB Exdiaibml explosion-proof design.
The station is constructed based on the industrial controller Siemens SIPLUSS7-200, and uses Bartec's control device and Siemens' soft-start control system.
Gallery
Rated network voltage, V |
660/1140 |
Power frequency, Hz |
fifty |
The maximum sum of rated load current, A: -Thyristor start -No thyristor start |
500 |
Number of bends: -Thyristor start -No thyristor start |
4 |
Auxiliary tap voltage, V |
42 |
Load capacity of auxiliary branch, A |
4 |
operating hours: -Long term; -Long interval |
|
Dimensions, mm, nothing more: -Length -width -height |
790 1060 |
Weight, kilograms, nothing more |
1800 |
Protection level |
IP 54 |
The climate version complies with GOST 15150-69 |
U5 |
