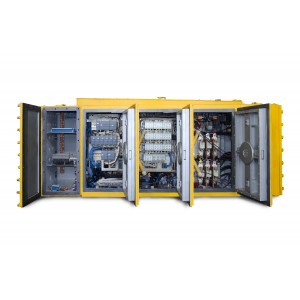

SCMU
The station is used in mines and outdoor installations to use squirrel-cage rotors to remotely smoothly control the start and stop operation of asynchronous motors. These dangers will release gas (methane) and coal dust.
The station has an explosion-proof PB Exdial design.
The station is based on the industrial controller Siemens SIPLUS S7-200, and uses Bartec and Siemens control equipment.
Gallery
|
Rated network voltage, V |
380 |
|
Power frequency, Hz |
fifty |
|
Maximum total load current, A |
500 |
|
Intrinsically safe discrete input/output quantity, each. |
67/19 |
|
Intrinsically safe analog input/output quantity 4...20 mA, pcs. |
4/2 |
|
Maximum voltage of intrinsically safe control circuit, V |
12 |
|
The number of intrinsically safe analog inputs used to connect electromagnetic induction sensors, pcs. |
4 |
|
operating hours: -Long term; -Long interval |
|
|
Dimensions, mm, nothing more: -Length -width -height |
770 940 |
|
Weight, kilograms, nothing more |
2300 |
|
Protection level |
IP 54 |
