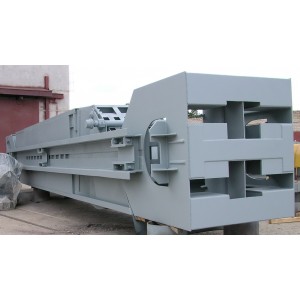

Skip SNM-35

  • Skip SNM-35

Контакты для консультации

+375174237000

info@ipr-holding.by

With the help of jump ropes, single rope and multiple rope lifting devices can be used to lift ore along a vertical axis to a depth of more than 900 m.

Skip type

SNM-35

Body capacity, m 3

35

Carrying capacity, t

42

Loading and unloading method

in

Shutter

department

conductor

Metal, box section

Conductor section, mm

200 × 200

The distance between conductors, mm

2100

Pending device size

2 pcs

The number of head ropes, each.

8
 Tail rope type Rubber strap
 Tail rope part, mm 400 × 25
 Number of tail ropes, each. Two ribbons, two branches

Maximum load of head rope, kN

1720

Skip weight, no suspension device, t

41.5
