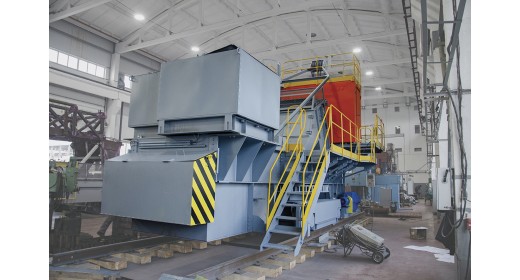

Self-propelled complex SPKK-500
The self-propelled loading and conveyor complex SPKK-500 is designed for unloading bulk materials (potassium chloride KCl) and other mineral fertilizers onto a conveyor belt.
The complex is part of a technological line, which includes a loading belt conveyor (or line), the complex itself and an unloading belt conveyor (or line).
The operation of the complex is synchronized with the operation of the unloading conveyor.
Gallery
Slope angle, deg. 37
Bulk weight, t/m3 1.05-1.14
Productivity, t\h 500
Movement mechanism, pcs. 2
Track gauge along rail axes, mm 2500
Distance between wheelsets, mm 2500
Running wheel diameter, mm 710
Travel speed, m/min 4.2
Turntable rotation speed, r/h 2.5
Arrow:
- quantity, pcs 1
- center distance, mm 14500
- the largest angle of inclination, deg. 60
Working side of scraper chain, mm 1600
Dimensions:
- length, mm, no more 25000
- height, mm, no more 6500
- width, mm, no more 4500
Height with raised boom, mm, no more 13500
