Type UP and KD

  • Type UP and KD

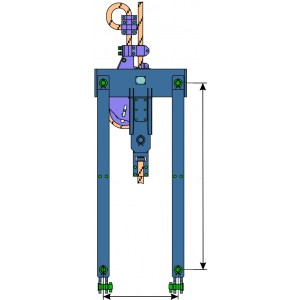

The suspension device UP with wedge-shaped thimble is equipped with a double-sided rope clamping device, which can connect the head rope to the vertical single rope lifting mine cage.

The thimble of the double-sided wire rope clamping device KD is used to connect the head rope to the crane vessel in the vertical shaft of the mine equipped with a single rope lifting device.

Technical index

Equipment type

UP-6.3

UP-12.5

UP-20

UP-25

UP-30

Static load, kN

63

125

200

250

300

Rope diameter, mm

20.0 ... 36.5

27.0 ... 46.5

33.0 ... 58.5

36.0 ... 58.5

42.0 ... 65.0

Width B, mm, not much

550

700

850

900

1000

Height Н, mm, not much

1700

1900

2150

2250

2300

Weight, kilograms, nothing more

215

410

700

910

1100

Technical index

Equipment type

KD-6.3

KD-12.5

KD-20

KD-25

KD-30

KD-46

Static load, kN

63

125

200

250

300

460

Rope diameter, mm

20.0 ... 36.5

27.0 ... 46.5

33.0 ... 58.5

36.0 ... 58.5

42.0 ... 58.5

60.0 ... 65.0

Weight, kilograms, nothing more

48

113

216

260

338

590

H, mm, no more

754

996

1306

1339

1429

1610

B, mm, no more

322

423

539

550

600

680

A, mm, no more

48

55

70

75

75

80

С, mm, no more

70

hundred

125

135

150

195

S, mm, no more

72

91

106

125

125

145

d, mm, no more

45

60

80

85

90

110
